The tow bar is manufactured from high-quality materials, it has undergone load tests as well as rigorous testing for strength and resistance to corro-
sion. The tow bar complies with homologation E1 55R-01 2858 and Australian homologation ADR62/02+AS4177-2004.

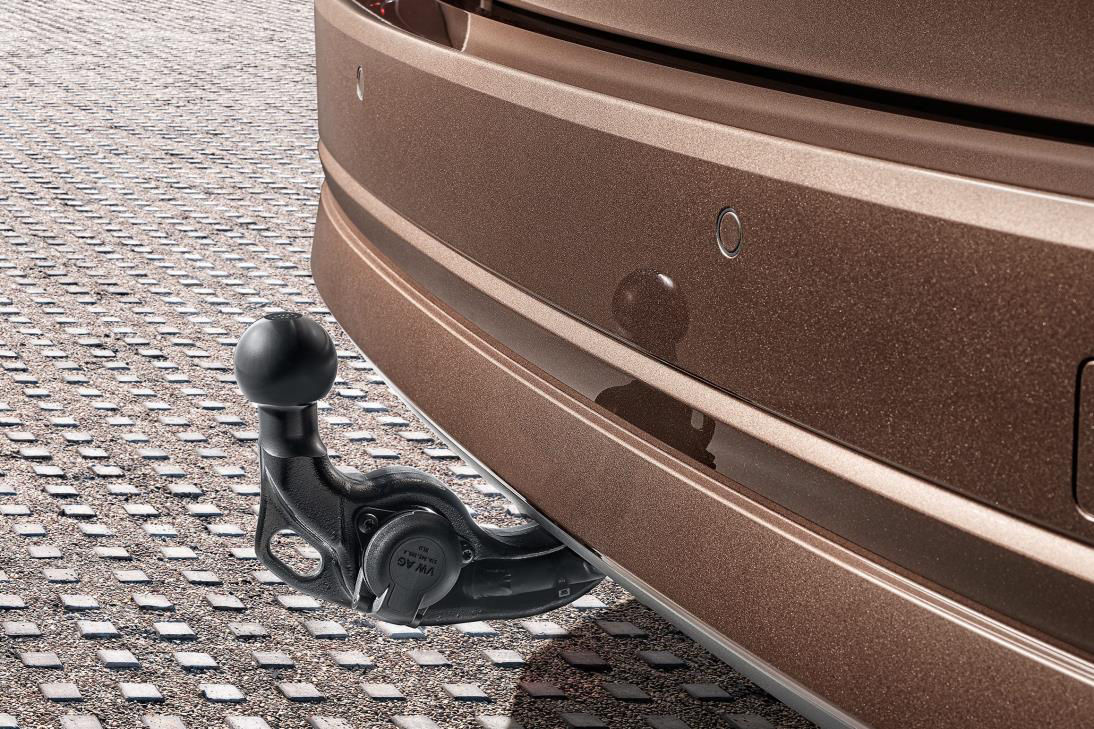

With this tow bar, a simple automatic mechanism allows the ball hitch to be swivelled out into the working position and then, when it is no longer needed, swivelled back in beneath the bumper. Retrofitting a tow bar to your vehicle increases the demand on its cooling system. As a result, depending on the equipment fitted to the vehicle, the cooling system components will need to be replaced in accordance with the information either held by workshop technicians in authorised Škoda Auto service centres / B2B.
Can not be fitted to cars intended for the Russian market.
For installation, further parts need to be ordered from Škoda Genuine Parts catalogue:
For cars without a tow bar preparation:
Wiring set 5E3 055 204A + 5E3 055 204B.
+ for Octavia Combi (NX5) without tow bar preparation
- difusor (1pcs) 5E6 807 521A
This part is not possible to fitt it to hybrid vehicles Octavia iV (PHEV).
Weight: 21 kg
Dimensions: 1120 x 620 x 220
Material: High-quality steel
Not suitable for car with:
- Octavia iV and Octavia RS iV
- Octavia G-TEC (CNG),
- Octavia Sport packet.
Cannot be retrofitted on 1,4 TSI 110kW cars.
For vehicles without tow bar preparation motorization 1.5 TSI produced from CW 12/2021 applies further removing the aerodynamic exhaust cover on the underbody of the car is necessary per the service manual!
If the specified procedure is not followed, there is a risk of damaging the fuel tank!
