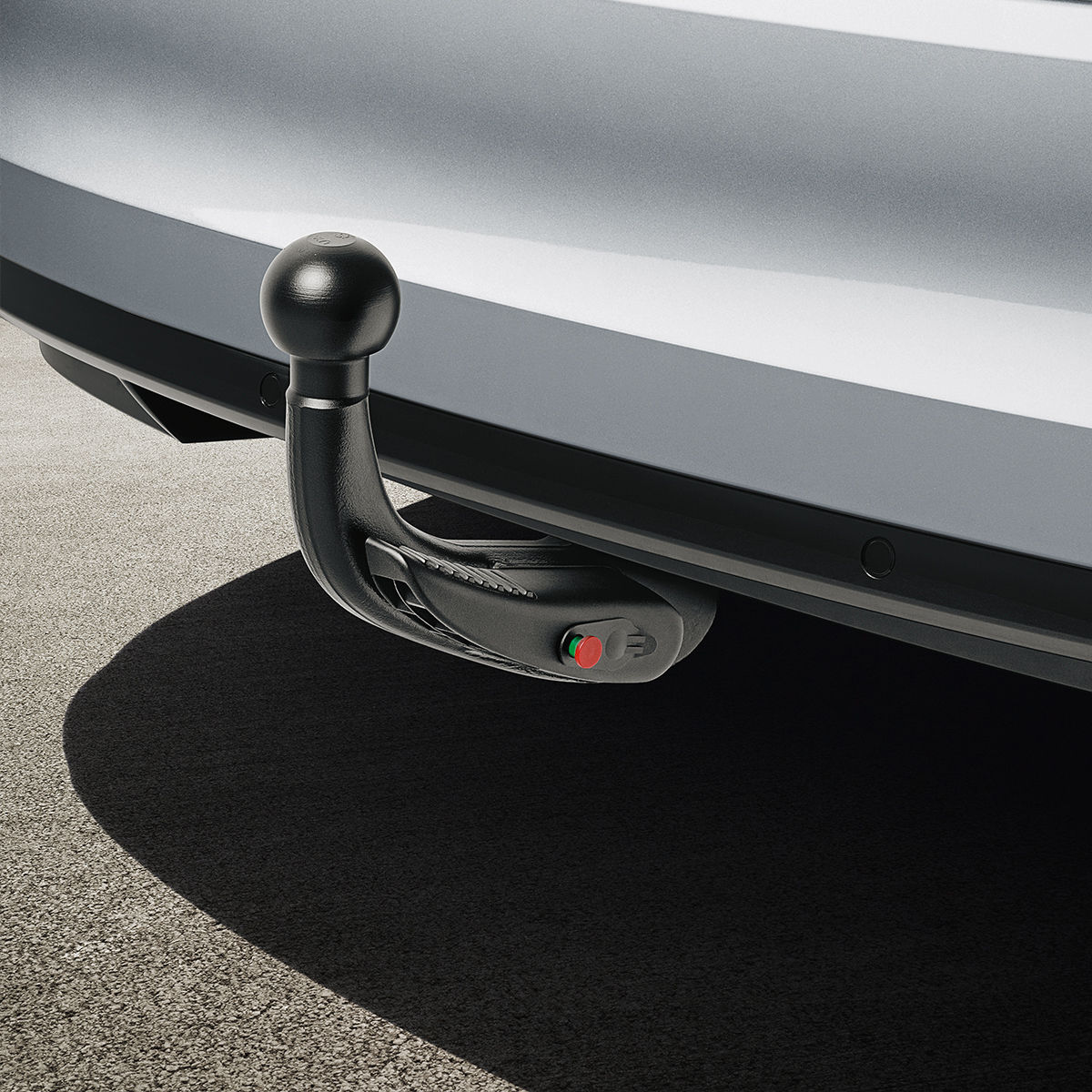

The tow bar is another of the practical extras from the ŠKODA Original Accessories range that increase the utility of the vehicle. Manufactured from high-quality materials, it has undergone rigorous testing for strength and resistance to corrosion, as well as load tests. The tow bar complies with homologation E8 55R-01 55657 and all Czech and international regulations, and its electrical wiring has been tested successfully for electromagnetic compatibility. The tow bar is lockable, thereby deterring any thieves. Thanks to the simple, automatic mechanism for fitting and removing the ball hitch, no tools are needed – meaning that it is much simpler to meet the legal requirements for removing the ball hitch when the trailer is uncoupled. When you are driving abroad, the country-specific legal regulations must be followed at all times if you have not attached a trailer to the tow bar fitted to your car. Retrofitting a tow bar to your vehicle increases the demand on its cooling system. As a result, depending on the equipment fitted to the vehicle, thecooling system components will need to be replaced in accordance with the information either held by workshop technicians in authorised ŠKODA AUTO specialist service centres or available in B2B. This tow bar set is intended for vehicles in the Czech Republic and for vehicles exported to all countries except Australia. The electrical wiring set is not included and must be ordered separately: For vehicles manufactured until CW 22/2014 Electrical wiring set – for vehicles set up for a tow bar 5E0 055 316 Electrical wiring set – for vehicles not set up for a tow bar 5E0 055 316A For vehicles manufactured from CW 22/2014 Electrical wiring set – for vehicles set up for a tow bar 5E0 055 202C Electrical wiring set – for vehicles not set up for a tow bar 5E0 055 204A + 5E0 055 202C If the vehicle is equipped with rear parking sensors from the ŠKODA Original Accessories range, the sensors will not deactivate when reverse gear is engaged and a trailer is attached.

Using: Maximum trailing load: Braked – up to 1600 kg; for four-wheel drive vehicles – 2000 kg; unbraked – up to 720 kg; The trailing load limits as specified in the registration document shall apply. Maximum vertical load: Front-wheel drive OCTAVIA, OCTAVIA Combi: 75 kg, OCTAVIA Combi 4x4: 80 kg. Maximum vertical load for accessories: 75 kg Weight: 17 kg Dimensions: 1040 mm x 620 mm x 220 mm. Material: High-quality steel, plastic
